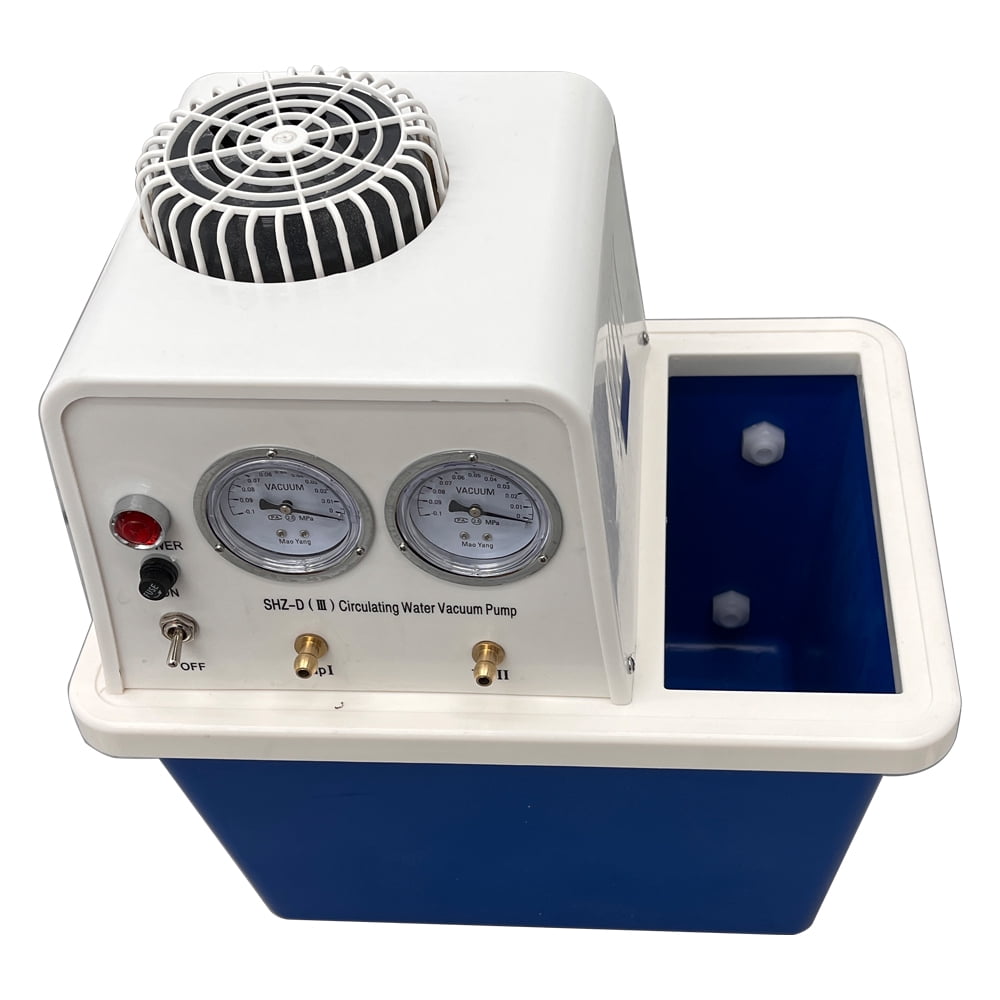

Water Circulating Vacuum Pump Lab Chemistry Equipment Water Circulator with 15L Water Tank 110V

Introduction: <br> This machine is used to provide vacuum condition for the process of evaporation, distillation, crystallization, drying, sublimation, filtration, decompression, degassing and so on, particularly be suitable for labs and small scale test of industries such as universities and colleges, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering, biological engineering.<br><br> Product parameters:<br> Voltage: 110V<br> Power: 180W<br> Lift: 26ft (8m)<br> Flow Rate: 60L/min<br> Max Vacuum: 0.098Mpa<br> Air Drawing Rate: 10L/min<br> Capacity of Water Tank: 15L<br> Size: 15.35'' x 11.22'' x 17.72''<br> Net weight: 18 lb (8kg)<br><br> Operation Steps:<br> 1. On first use, open the upper cover of the water tank and inject cold water till the water level reaches the height of the upper water outlet.<br> 2. Link tightly the tube to the sucking tap. Then put through the power and the pump begins to work.<br> 3. If the machine need to work for a long time, the temperature of the tank water will rise effecting the vacuum degree. At this time, connect the drain hose with tap water and drain water from the water outlet. You need to control the amount of the tap water so as to keep the temperature of the constant and the vacuum degree stable.<br><br> Item Number(170346):<br> 1 x Water Circulating Pump

• 【High Quality Material】This vacuum pump adopts high-strength ABS engineering plastics, which is more durable. Also, it is upgraded with anti-corrosion and anti-rust copper, which will avoid the devices be contaminated.
• 【Double Suction Tap & Display】It can be operated with single tap or use the both taps simultaneously for higher efficiency.
• 【15L Water Tank】It is equipped with a 15L water tank, with removable case for quick water/ice in. Silent use with special fluid muffler, which can reduce the noise and liquid friction.
• 【Main Parametrs】Input: 110V; Single-tap Sucking Rate: 10L/Min; The Max. Vacuum Degree: 0.098Mpa; Flow Rate: 60L/Min; Lift: 8M; Tube Amount: Dual-Use Pump.
• 【Wide Application】It is used to provide vacuum condition for the process of evaporation, distillation, crystallization, drying, sublimation, filtration, decompression, degassing and so on. Perfect for labs, research center, chemical industry, pharmacy, biochemistry, foodstuf, agricultural engineering, biological engineering etc.
